RS-140 IP Intercom Switch Panel
RS-140

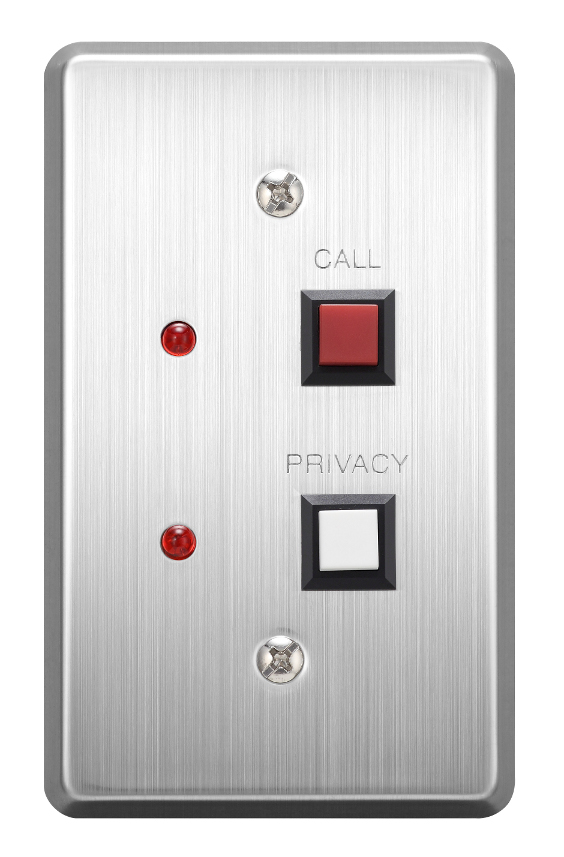

The RS-140 is a switch panel designed for use with the N-8000RS or N-8010RS 2-Core Shielded Substation Interface Unit. It is equipped with a Call button and a Privacy button, and can be installed in a 1-gang electrical box. By connecting a high impedance speaker to it, hands-free conversation with the master station can be made through its speaker. Also, it can be used in connection with the RS-141 Ip Intercom Option Handset.
| Call-in Switch | Momentary |
|---|---|
| Privacy Switch | Latching |
| Indicator | When called : Status indicator (red) flashing In conversation : Status indicator (red) lit In privacy : Privacy indicator (red) lit |
| Wiring | Two-core shielded cable |
| Transmission Range | 0.5 km (546 yd)/φ0.5 mm (AWG24) 0.8 km (874 yd)/φ0.65 mm (AWG22) 1.3 km (1421 yd)/φ0.9 mm (AWG19) |
| Operating Temperature | 0 %%dC to +40 %%dC (32 ゜F to 104 ゜F) |
| Finish | Plate: Stainless steel, hairline Call-in Switch: resin, red Privacy Switch: resin, white |
| Dimensions | 70 (W) × 115 (H) × 28.6 (D) mm (2.76" × 4.53" × 1.13") |
| Weight | 80 g (0.18 lb) |
| Accessory | Mounting bracket ……1, bracket mounting screw (No.6-32UNC × 18) ……2, Box mounting screw (M4 × 30) ……2, Box mounting screw (No.6-32UNC × 30) ……2 |
| Applicable Box | Flush-mount box: YC-801 (option) Wall-mount box : YC-802 (option) |
