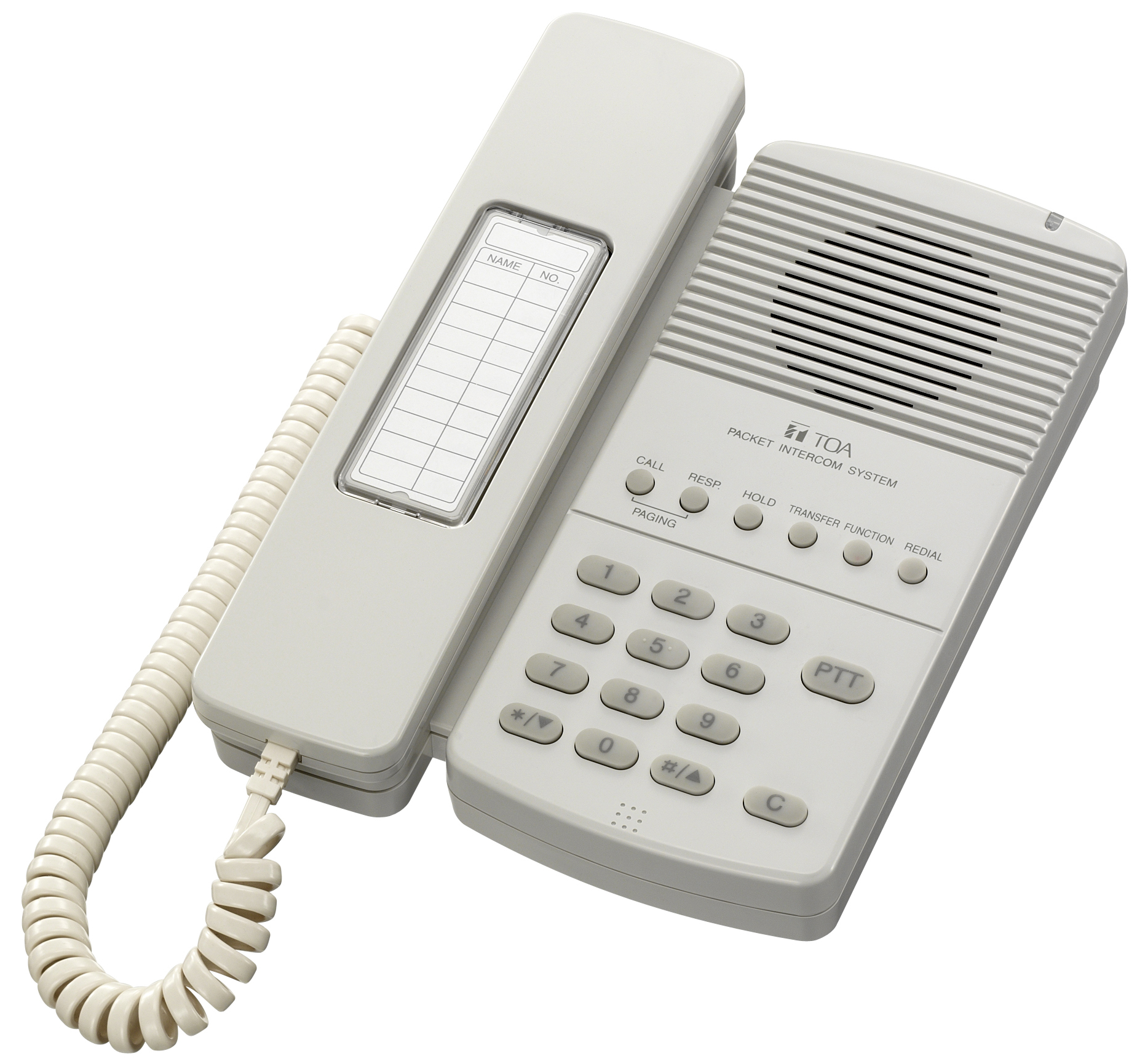

N-8410MS Analog Standard Master Station
N-8410MS
This Master Station is designed to connect to the N-8400RS Sub Station Interface Unit, and provides hands-free or handset conversation of high sound quality. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.
- * 0 dB = 1 V
| Power Source | 24 V DC (supplied from the sub station interface unit N-8400RS) |
|---|---|
| Current Consumption | Max. 30 mA |
| Wiring Method | 2 sets of twisted pair cable |
| Transmission System | 4 wire baseband transmission system |
| Signal Level | 25 dB* (up) |
| Speech Method | Hands-free or handset conversation |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Transmission Range | 1 km (1093 yd)/φ0.5 mm (AWG24) 1.5 km (1640 yd)/φ0.65 mm (AWG22) 2 km (2187 yd)/φ0.9 mm (AWG19) |
| Hands-free | Speaker: 5.7 cm cone-type Microphone: Omni-directional electret condenser microphone Speaker volume control: 3-step switch (1-step |
| Handset | Receive path: Dynamic type Handset receiver volume control: Rotary volume Maximum control level: 12 - 18 dB |
| Indication | Status lamp |
| Line Connecting Terminal | RJ11 modular jack |
| Installation Method | Desk/Surface mounted master station (When mounting to the wall |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Body |
| Dimensions | 148 (W) x 208 (H) x 70.5 (D) mm (5.83 × 8.19" × 2.78) (excluding a curl cord section) |
| Weight | 720 g (1.59 lb) |
| Accessory | Connection cord (3 m (9.84 ft)) …1 |
| Option | Wall mounting bracket: YC-280 |
