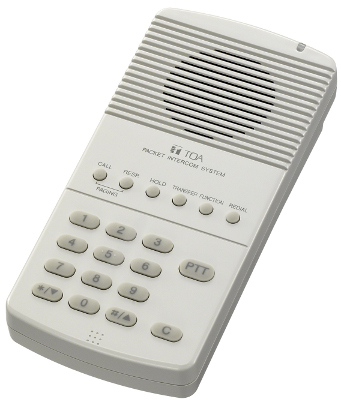

N-8011MS Standard Hands-Free Master Station
N-8011MS
This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free conversation of high sound quality. With its space-saving design, this Master Station features the same functions as the Standard Master Station. This station can be mounted to the wall using an optional YC-290 wall mounting bracket.
- * 0 dB = 1 V
| Power Source | 48 V DC (supplied from the IP intercom exchange (option)) |
|---|---|
| Power Consumption | 1.8 W (at rated), 2.4 W (max.) |
| Wiring Method | 1 set of twisted pair cable |
| Transmission System | 2 wire 160 kbps echo canceller transmission system |
| Signal Level | Under 0 dB* |
| Speech Method | Hands-free conversation |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Transmission Range | Max. 1500 m (φ0.65 mm, Loop resistance 170 Ω) |
| Hands-free | Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω Microphone: Omni-directional electret condenser microphone |
| Indication | Status lamp |
| Line Connecting Terminal | RJ11 modular jack |
| Installation Method | Desk/Surface mounted master station (When mounting to the wall, use the optional YC-290.) |
| Operating Temperature | 0 ℃ to +40 ℃ |
| Operating Humidity | Under 90 % RH (no condensation) |
| Finish | Body: ABS resin, gray |
| Dimensions | 92 (W) x 195 (H) x 56.1 (D) mm |
| Weight | 400 g |
| Accessory | Connection cord (3 m) …1 |
| Option | Wall mounting bracket: YC-290 |
