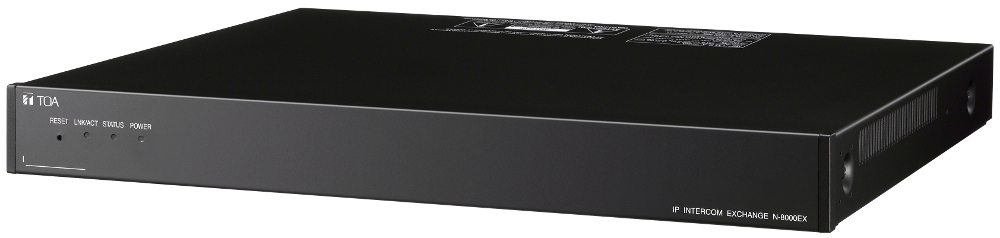

N-8010EX IP Network Intercom Exchange
N-8010EX KR
The IP Intercom Exchange uses packet audio technology to permit connection of up to sixteen N-8000 Series stations. Simultaneous hands-free conversation is possible between stations. Moreover, the exchange is equipped with a networking interface, allowing up to 80 exchanges to be connected over a network using additional IP intercom exchanges. The Exchange can be mounted in an EIA standard rack (1-unit size) or to a wall using the supplied bracket.
- * 0 dB = 1 V
| Power Source | 230 V AC, 60 Hz |
|---|---|
| Power Consumption | 50 W (at rated), 75 W (max.) |
| Interface Section for station | Number of lines: 16 lines Number of speech link: Internal: 1/External: 2 Type of Speech Path: Space sharing/Time Space sharing Transmission system: 2 wire 160 kbps echo canceller transmission system Signal Level: 0 dB* or less Transmission range: Max. 1500 m (1640.42 yd) Speech method: Simultaneous conversation by way of echo canceller (Hands-free), Connector: Dedicated connector Wiring method: 1 set of twisted pair cable Feeding voltage/current: 48 V DC, Max. 70 mA |
| Paging Output | Station paging only |
| Network Section | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Audio packet transmission system: Unicast, Multicast Number of paging destinations: Unicast (max. 16), Multicast (max. 79) Connector: RJ45 connector Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) Quantifying bit number: 16-bit Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Indication | Network LNK/ACT indication, Status lamp, Power-on indication lamp |
| Others | Firmware update function, System registration data entry hold facility, Time of day hold facility, Forced air cooling, Reset switch (front panel) |
| Setting Method | Rack, Desk, Surface mount |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 420 (W) x 44.3 (H) x 356 (D) mm (16.54" × 1.74" × 14.02") |
| Weight | 4.2 kg (9.26 lb) |
| Accessory | AC power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1, Mini-clamp plug (2 pins) …20, Plastic foot …4, Screw for fitting plastic foot …4, Rack mounting bracket …2, Screw for rack mounting …4, Wall mounting bracket …2, Screw for mounting bracket …8, Screw for wall mounting …4 |
