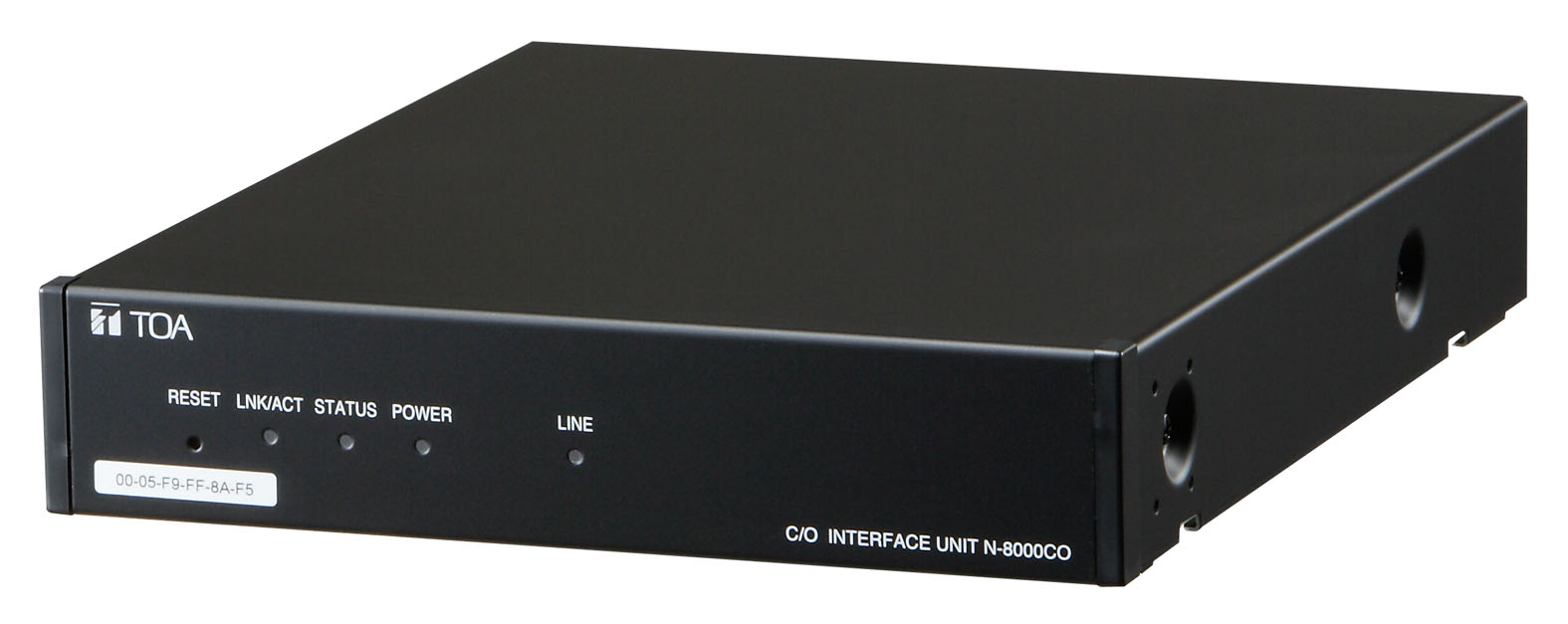

N-8000CO C/O Interface Unit
N-8000CO CE
The N-8000CO is a C/O interface unit designed for use with TOA's packet intercom system (IP network-compatible intercom system) that employs the packet audio technology. It has an analog central office line circuit, allowing the intercom station to make and receive calls to and from the telephone line. Connecting the unit to the LAN permits paging calls through analog subscriber line to be made and the equipment connected to the N-8000MI and N-8000DI to be controlled. It can be mounted in an EIA equipment rack (1U size) with the use of an optional rack mounting bracket or installed on a wall using an optional wall mounting bracket.
| Power Source | 220 - 240 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 7 W (max.) |
| C/O Interface | Public Switched telephone networks Number of lines: 1 line Selective signal type: DTMF signal Signal system: Compatible with loop start signaling Wiring method: 1 pair of twisted pair cables |
| Network Section | Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation) Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP Audio packet transmission system: Unicast, Multicast Number of paging destinations: Unicast (max. 8), Multicast (max. 191) Connector: RJ45 connector Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software) Quantifying bit number: 16-bit Voice encoding method: Sub-band ADPCM, Cryptosystem Voice packet loss recovery: Silence insertion Audio delay time: 80 ms, 320 ms (controllable on the software) |
| Indication | Network LNK/ACT indication, Status lamp, Power-on indication lamp, Line in-use lamp |
| Other | Firmware update function, System data hold function, Time of day hold facility, Reset switch (front panel) |
| Setting Method | Rack, Desk, Surface mount |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate, black, 30 % gloss |
| Dimensions | 210 (W) × 44.3 (H) × 267 (D) mm (8.27" × 1.74" × 10.51") |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | Power cord (2 m (6.56 ft)) …1, CD (for PC setting, maintenance use) …1, Mini-clamp plug (2 pins) …2, Plastic foot …4, Screw for fitting plastic foot …4 |
| Option | Rack mounting bracket: MB-15B-BK (for rack mounting one N-8000CO unit) MB-15B-J (for rack mounting two N-8000CO units) Wall mounting bracket: YC-850 |
