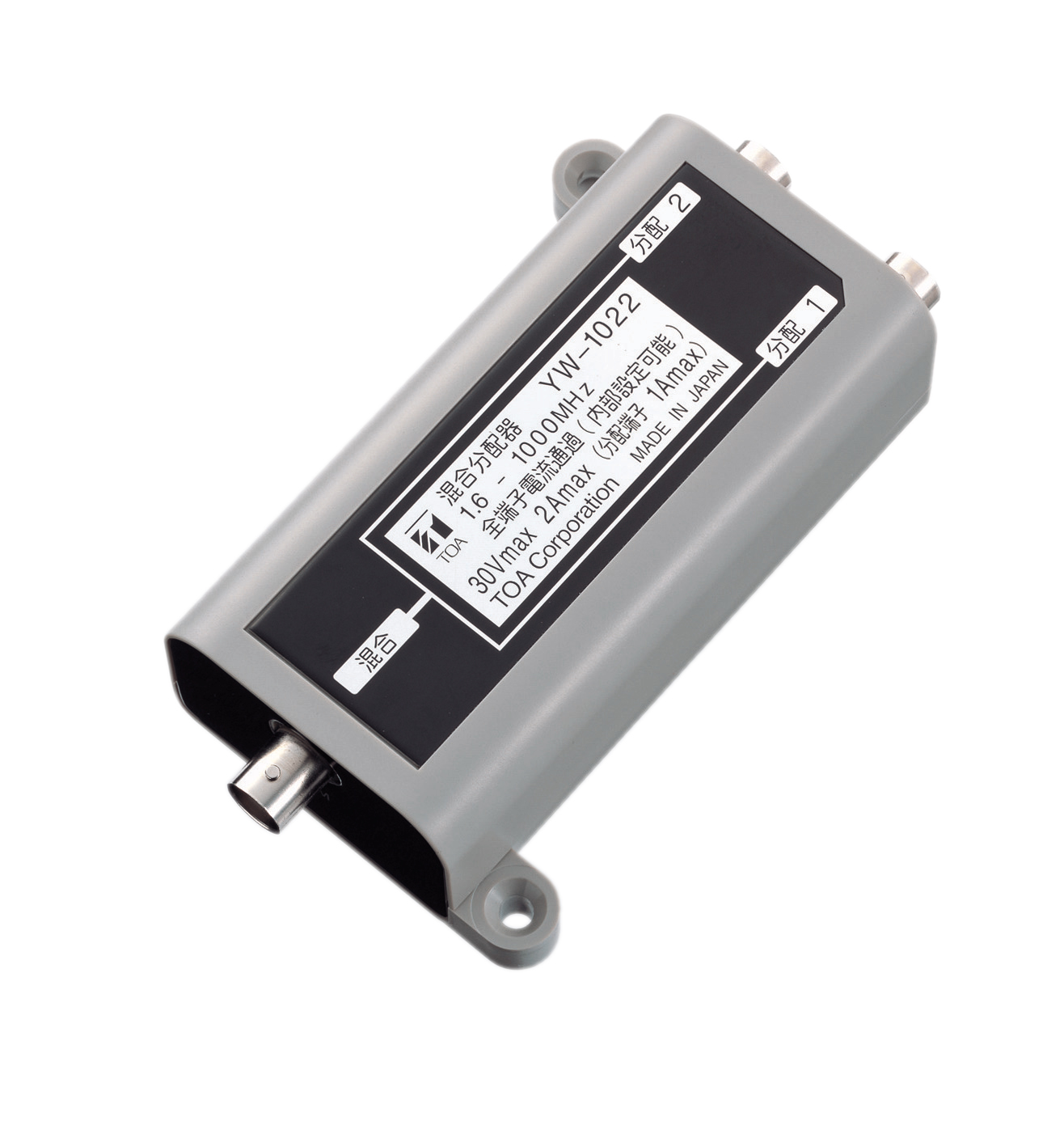

YW-1022 Distributor
YW-1022
The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.
Frequency Range | 1.6 - 1,000 MHz (excluding 50 - 70 MHz) |
---|---|
Distribution Loss | 4.5 dB ±3 dB (between the Mixing and each Distribution terminals) |
Input/Output Impedance | 75 Ω |
Coaxial Connector | Mixing terminal: BNC jack, power passing type (under 30 V DC, under 2 A) Distribution 1 and 2 terminals: BNC jack, power passing type (under 30 V DC, under 1 A) |
Operating Temperature | -10℃ to +50℃ |
Finish | ABS resin, gray |
Dimensions | 75 (W) × 122 (H) × 34 (D) mm |
Weight | 105 g |
