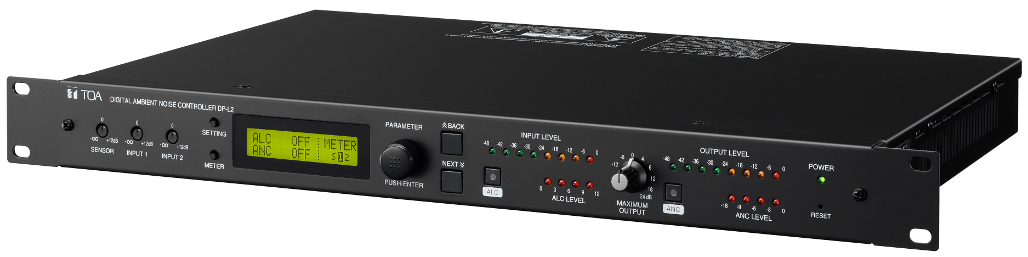

DP-L2 Digital Ambient Noise Controller
DP-L2
The DP-L2 is a digital audio processor equipped with 2 × Input, 2 × Output, 1 × ambient noise sensor microphone input and 1 × monitor output and features easy setting of each function by the front panel operation. It is equipped with an ambient noise control function (The ANC function distinguishes between the unit's output sound and the ambient noise. The unit's output sound is not detected as noise.) and an automatic level control function that keeps the input signal level constant. It can be mounted in an EIA Standard equipment rack (1 unit size).
- * 0 dB = 0.775 V
| Power Source | 220 - 240 V AC |
|---|---|
| Power Consumption | 20 W (220 mA) |
| Frequency Response | 20 Hz - 20 kHz |
| Sampling Frequency | 48 kHz |
| Dynamic Range | 108 dB (IHF-A weighted) or more |
| Distortion | 0.006 % or less |
| Input | Sensor input (Ambient noise sensor microphone input) : +4/-48 dB* changeable removable terminal block (4 pins) phantom power (+15 V DC with +15 V DC terminal Input 1 removable terminal block (3 pins) |
| Output | Monitor output: +4 dB* Output 1 |
| A/D Converter | 24 bit |
| D/A Converter | 24 bit |
Signal Processing
| Automatic Level Control Function | Level meter (4 LED meters) Automatic input sensitivity setting function: +4/-8/-20 dB* Noise gate level setting: -99 to -3 dB |
|---|---|
| Ambient Noise Control Function | Level meter (4 LED meters) Automatic sensor input reference level measuring function Sensor input reference level fine adjustment function Maximum output signal level control: -15 to 0 dB Minimum output signal level control: -18 to -3 dB Sample time setting: 10 s Gain ratio setting: (Ambient noise: Output signal level) 6:3 Ambient noise measuring frequency setting: 20 Hz - 20 kHz |
| Maximum Output Signal Level Control Function | -12 |
| Input Level Indicator | 8 LEDs indicator |
| Output Level Indicator | 8 LEDs indicator |
| Other Feature | Phantom power switch (sensor input) Ground lift switch (INPUT 1 |
|---|---|
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 90 %RH or less (no condensation) |
| Finish | Pre-coated steel plate |
| Dimensions | 482 (W) × 44 (H) × 303 (D) mm (18.98 × 1.73" × 11.93) |
| Weight | 3.7 kg (8.16 lb) |
| Accessory | Removable terminal plug (4 pins)…1 Power cord (2 m (6.56 ft)) …1 |
