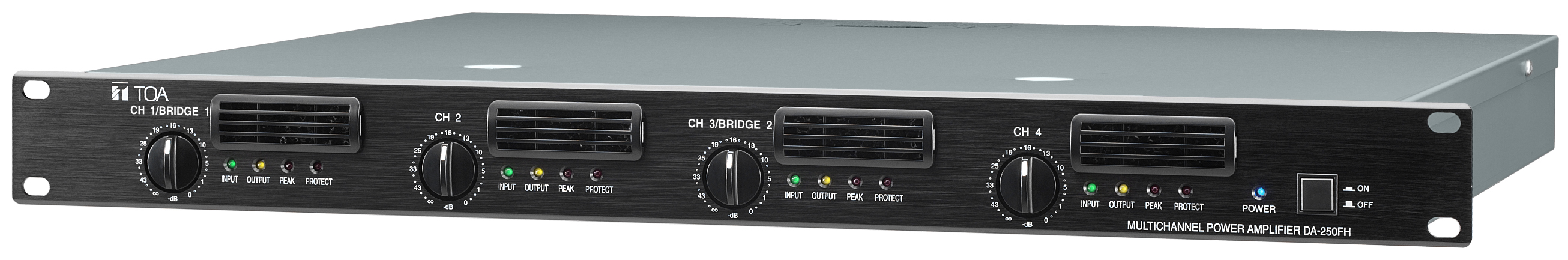

DA-250FH Multichannel Power Amplifier
DA-250FH KR
The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W × 4 channels (40 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
- *0 dB = 0.775 V
Power Source | 220 - 240 V AC, 60 Hz |
---|---|
Amplification System | Class D |
Power Consumption | 200 W (based on KIS standards) 1150 W (rated output 100 V line, 40 Ω × 4) |
Input | 4 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins) CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch) |
Rated Output | 4 channels: 250 W × 4 (100 V line, 40 Ω) M4 screw terminal, distance between barriers: 8.8 mm |
Frequency Response | 50 - 20,000 Hz (-3 dB, +1 dB) |
Total Harmonic Distortion | 0.1% (1 kHz) 0.3% (100 - 20,000 Hz) |
Protection Circuit | Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (110℃ or more), temperature rise inside the unit (80℃ or more) |
S/N Ratio | 100 dB (A-weighted) |
Crosstalk | 70 dB (A-weighted) |
LED Indicator | Power (blue) × 1, Input (green) × 4, Output (yellow) × 4, Peak (red) × 4, Protect (red) × 4 |
Cooling | Forced air cooling |
Operating Temperature | -10℃ to +40℃ |
Operating Humidity | 90% RH or less (no condensation) |
Finish | Panel: Aluminum, black, alumite Case: Plated steel sheet |
Dimensions | 482 (W) × 44 (H) × 401.8 (D) mm |
Weight | 6.8 kg |
Accessory | Power cord (2 m) …1, Removable terminal plug (3 pins) …4, Tamper-proof cap …4, Rack mounting screw (with plain washer) …4 |
Option | Matching transformer: MT-251H |
