ZM-9014 Remote Control Panel
ZM-9014

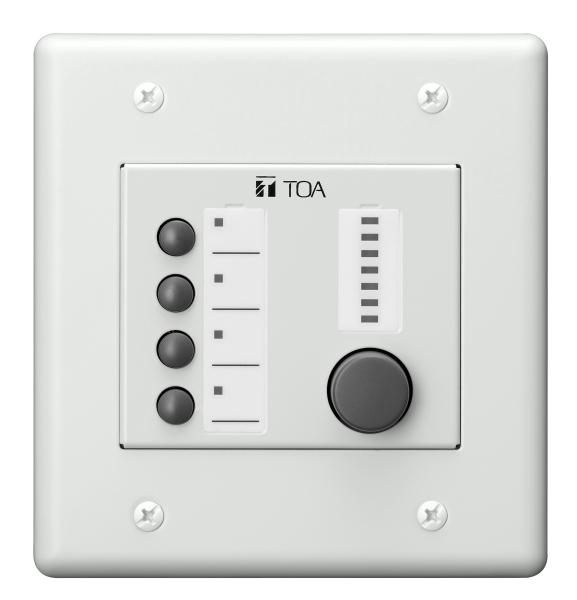

Designed for exclusive use with the 9000M2 Series amplifier or M-864D, the ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.
| Power Source | 24 V DC (supplied from RC-001T or M-864D) |
|---|---|
| Current Consumption | 50 mA or less |
| Terminal | Removable terminal block (10 pins) |
| Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) |
| Operating Section | 4 function buttons, 1 volume control |
| Indicator | 4 function indicators (green LEDs), Level indicators (green LEDs) |
| Operating Temperature | 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Surface-treated steel plate, white, paint |
| Dimensions | 120 (W) × 127 (H) × 58.5 (D) mm (4.72" × 5" × 2.3") |
| Weight | 374 g (0.82 lb) |
| Accessory | Box mounting screw (No.6-32UNC × 30) …4, Box mounting screw (M4 × 30) …4, Panel mounting screw …4, Removable terminal plug (10 pins) …1 |
