T-001T Dual Line Output Expansion Module with DSP
T-001T

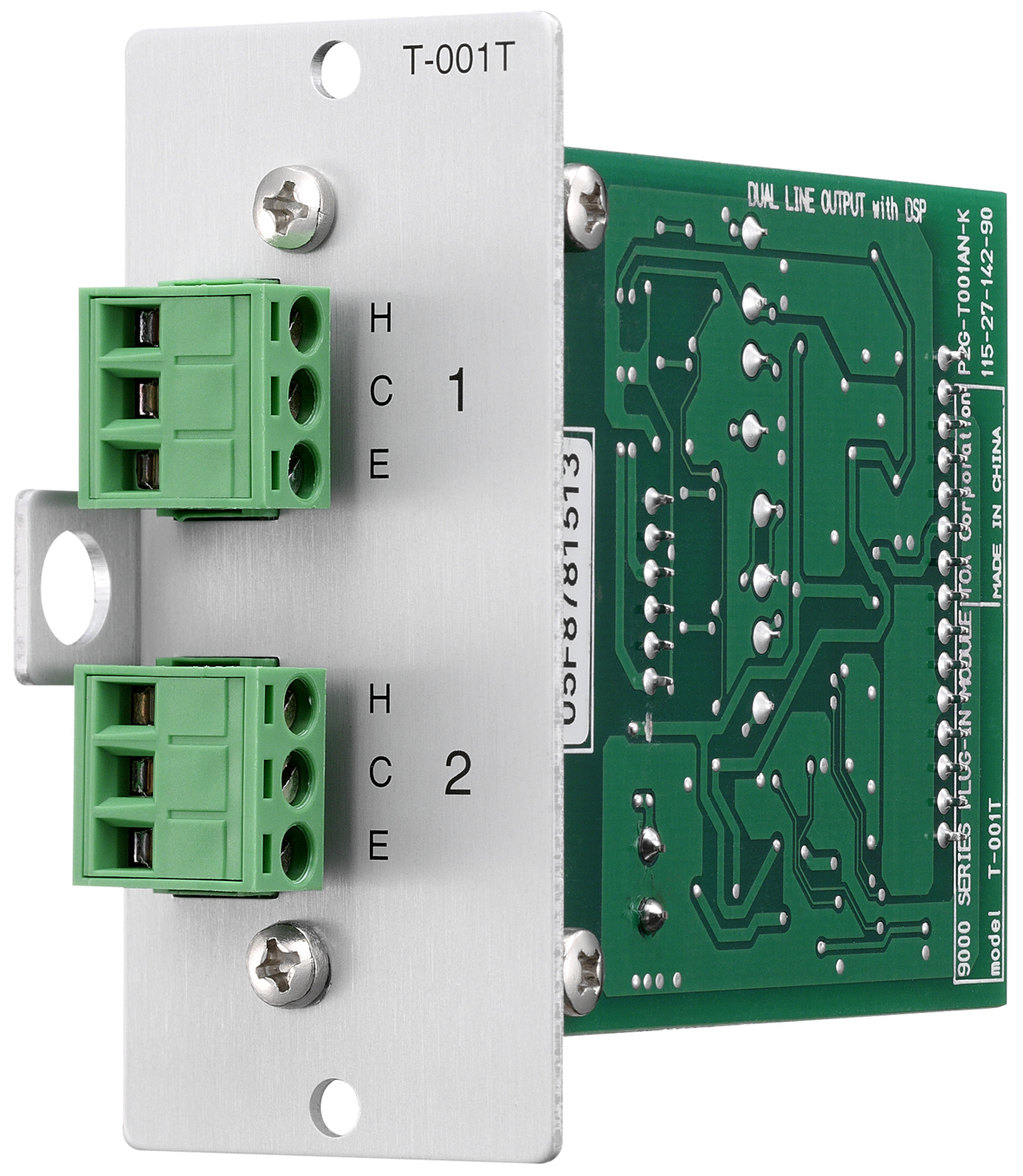

The T-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ω up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently..
- * 0 dB = 1 V
| Power Source | +24 V DC, -24 V DC, +6 V DC |
|---|---|
| Current Consumption | 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC) |
| Output | 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins) |
| Frequency Response | 20 Hz - 20 kHz, +1, -3 dB |
| Total Harmonic Distortion + N | 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load) |
| S/N Ratio | Over 73 dB (at 20 Hz - 20 kHz BPF) |
| Residual Noise | Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB) |
| Cross Talk | Over 87 dB (at 20 kHz) |
| D/A Converter | 24 bit DAC |
| Sampling Frequency | 48 kHz |
| Tone Control | Bass: ±12 dB (at 100 Hz) Treble: %%p12 dB (at 10 kHz) |
| Parametric Equalizer | 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5 |
| Speaker Equalizer | 10 (setup software has 30 TOA speaker presets) |
| High-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Low-pass Filter | -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points |
| Compressor | Depth: 1 - 5 |
| Delay | 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only |
| Operating Temperature | -10 ℃ to +40 ℃ |
| Finish | Panel: Aluminum, hair-line |
| Dimensions | 35 (W) × 78 (H) × 91.5 (D) mm |
| Weight | 82 g |
| Accessory | Removable terminal plug (3 pins) …2, Module mounting screw …2 |
