WT-4820 UHF Wireless Tuner
WT-4820

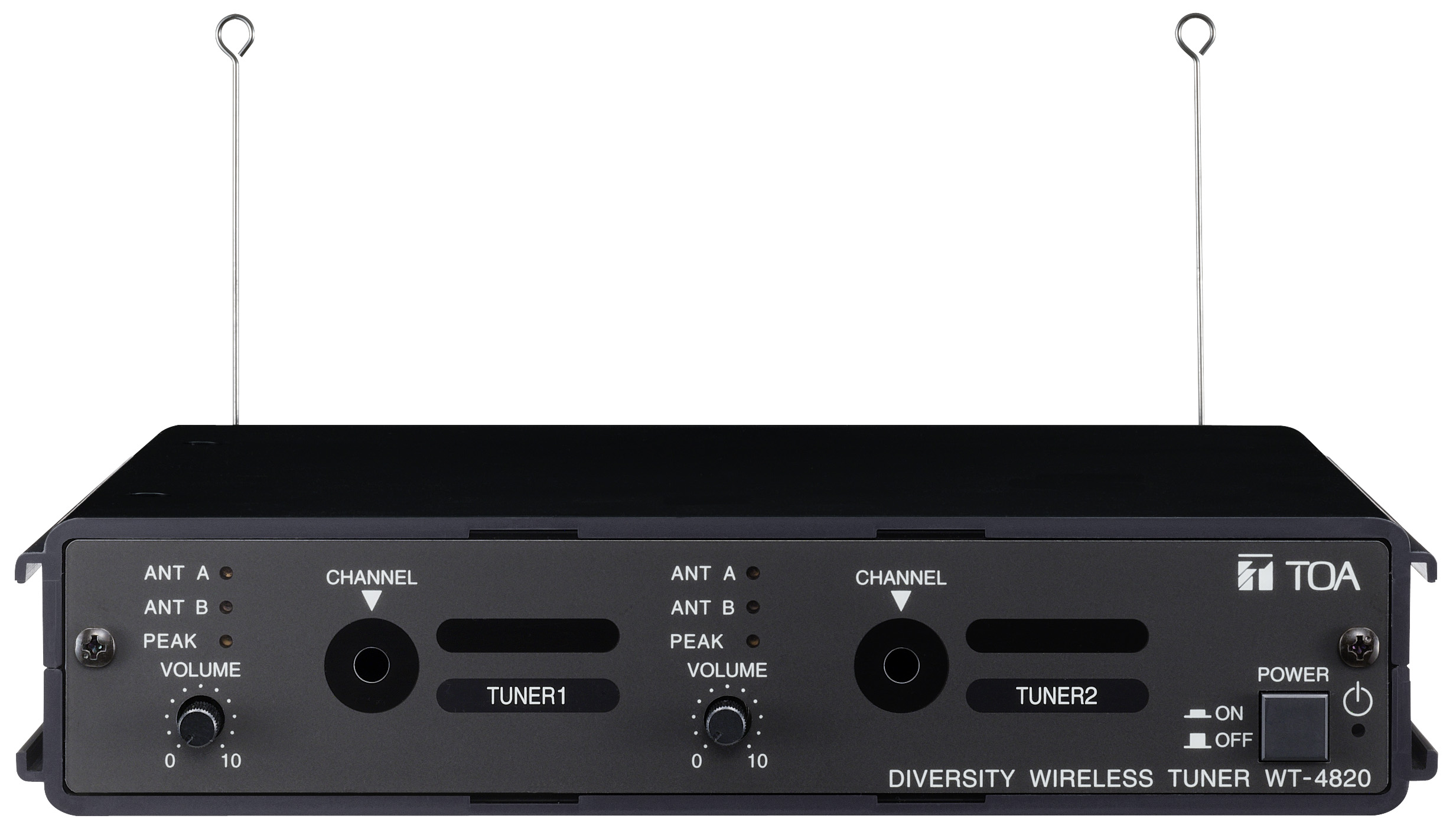

The TOA WT-4820 diversity tuner can accept up to two optional wireless tuner modules of UHF band (WTU-4800). It can be mounted in a component rack using an optional mounting bracket (MB-WT3, MB-WT4).
- (*1) 0 dB = 1 V
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 250 mA (12 V DC, when operating with two tuner modules) |
| Receiving Frequency | 636 - 865 MHz(*3), UHF |
| Mixing Input | -20 dB(*1), 10 kΩ, unbalanced, phone jack |
| Audio Output | Mixing/Channel 1 (selectable): -20 dB(*1) (+6 dB(*1) Max.), 600 Ω, unbalanced, phone jack -14 dB(*1) (+12 dB(*1) Max.), 600 Ω, balanced, XLR-3-31 type connector Channel 2: -20 dB(*1) (+6 dB(*1) Max.), 600 Ω, unbalanced, phone jack |
| Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Antenna Output | 75 Ω, BNC (Gain 0 dB) |
| Indicator | ANT A/B, Audio (peak), Power |
| S/N Ratio | 102 dB or more (A-weight, balanced output) |
| Harmonic Distortion | 1% or less |
| Frequency Response | 50 - 18,000 Hz, ±3 dB |
| Operating Temperature | -10℃ to +50℃ |
| Finish | Resin, black |
| Dimensions | 210 (W) × 44 (H) × 181 (D) mm |
| Weight | 770 g (without tuner module) |
| Accessory | AC adapter(*2) …1, Rod antenna …2, Rubber foot …4 |
| Option | Mounting bracket kit: MB-WT3 (for rack mounting one WT-4820 unit) MB-WT4 (for rack mounting two WT-4820 units) |
