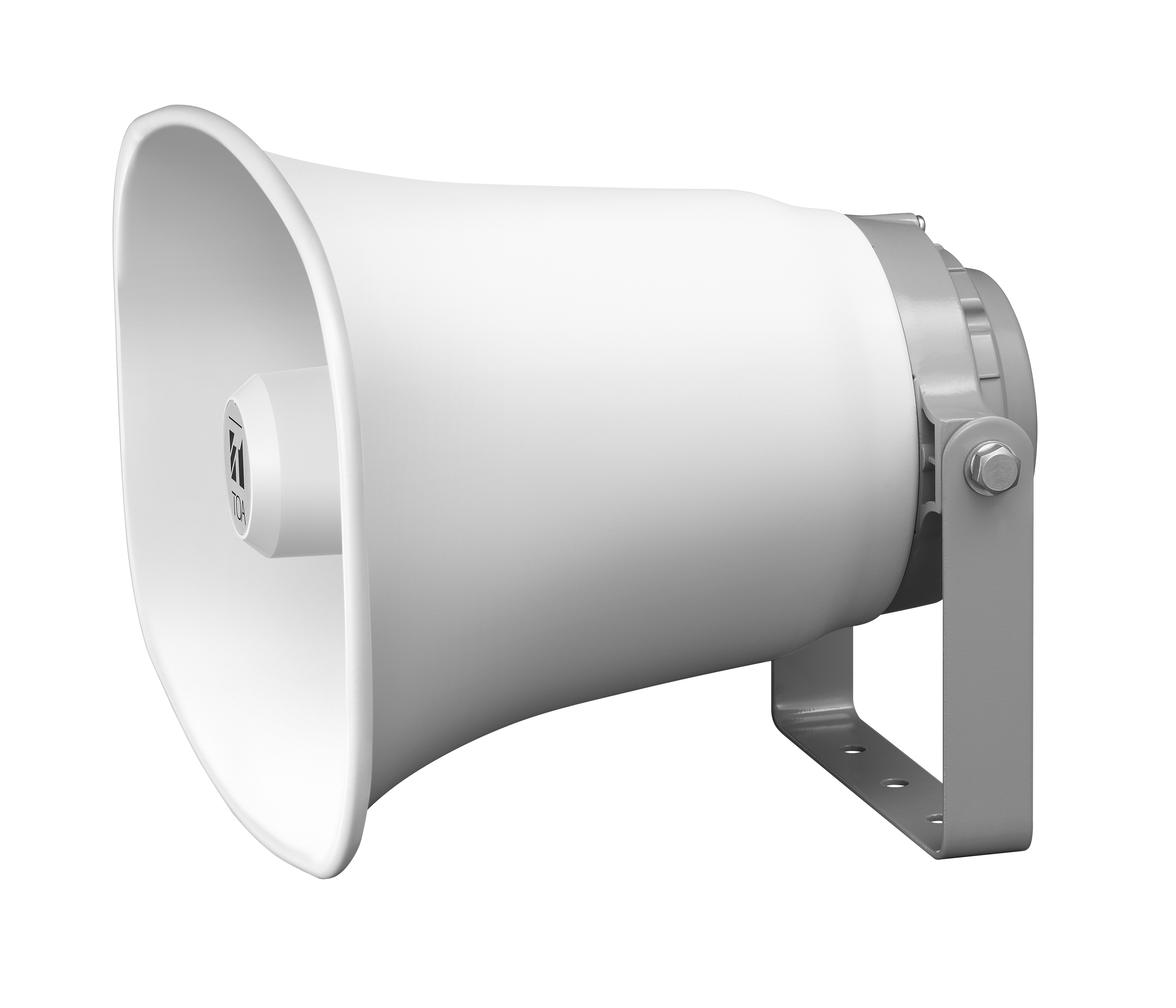

SC-651Paging Horn Speaker

SC-651

The SC-651 is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel screws ensure the unit's weatherproof capability.

사양
Rated Input 50 W (Mobile Mount use: 30 W)
Rated Impedance 16 Ω
Sensitivity 109 dB (1 W, 1 m)
Frequency Response 250 Hz - 6 kHz
Dust/Water Protection IP65
Polarity Hot: Black, Com: White
Operating Temperature -20 ℃ to +55 ℃ (-4 ゜F to 131 ゜F) (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn: ABS resin, off-white
Bracket holder: Aluminum, gray, powder coating
Bracket: Steel, gray, powder coating
Rear cover: ABS resin, gray
Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm (0.24") in diameter, 600 mm (23.62") in length)
Dimensions 430 (W) × 297.5 (H) × 327 (D) mm (16.93" × 11.71" × 12.87")
Weight 3.4 kg (7.5 lb)
Note: Avoid installing the speaker in locations which vibrate considerably, or under environments easy to be oil-contaminated.
