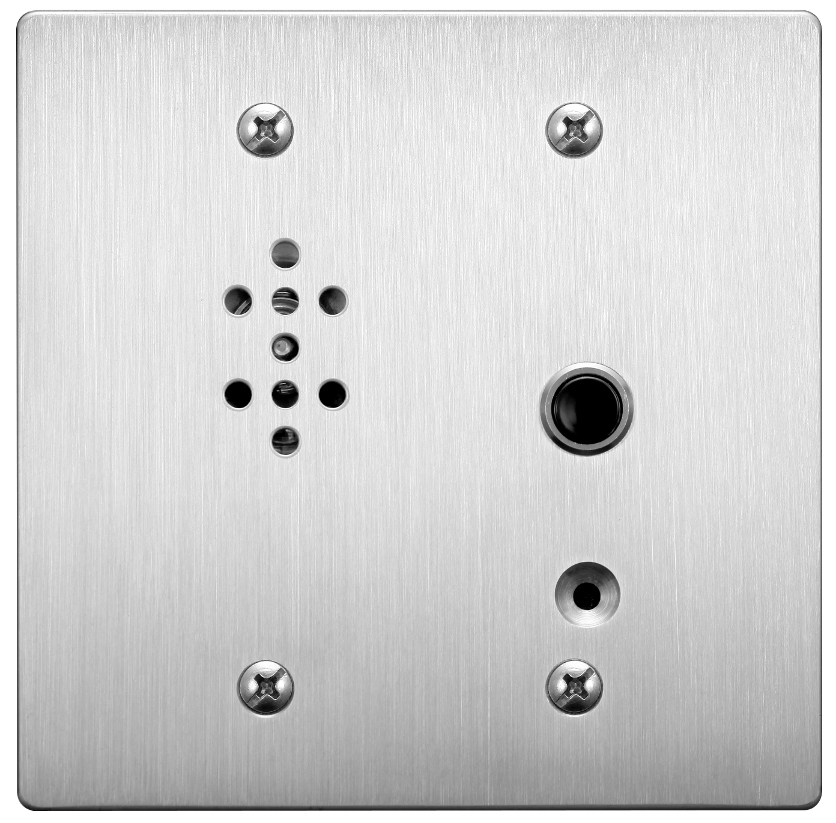

RS-450 IP Intercom Substation
RS-450
The RS-450 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit. Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation.
Call-in Switch | Momentary (Emergency call: Press twice within 400 ms.) |
---|---|
Rated Input | 1 W |
Internal Speaker | cone-type |
Internal Mic | Electret condenser type |
Wiring | Twisted pair cables (2-pair) |
Transmission Range | 1 km (1093 yd)/φ0.5 mm (AWG24) 1.5 km (1640 yd)/φ0.65 mm (AWG22) 2 km (2187 yd)/φ0.9 mm (AWG19) |
Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (Temperature range not to freeze the speaker and switch) |
Finish | Panel: Stainless steel, hairline Call Switch: Resin, black |
---|---|
Dimensions | 120 (W) × 120 (H) × 41.5 (D) mm (4.72" × 4.72" × 1.63") |
Weight | 510 g (1.12 lb) |
Accessory | Box mounting screw (No.6-32UNC × 18) ……4, Box mounting screw (M4 × 25) ……4 |
Applicable Box | 2-gang electrical box: YC-302 (option) |
